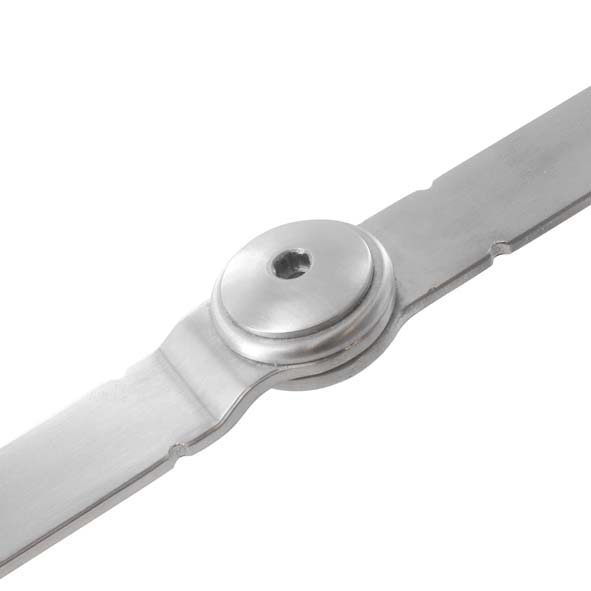

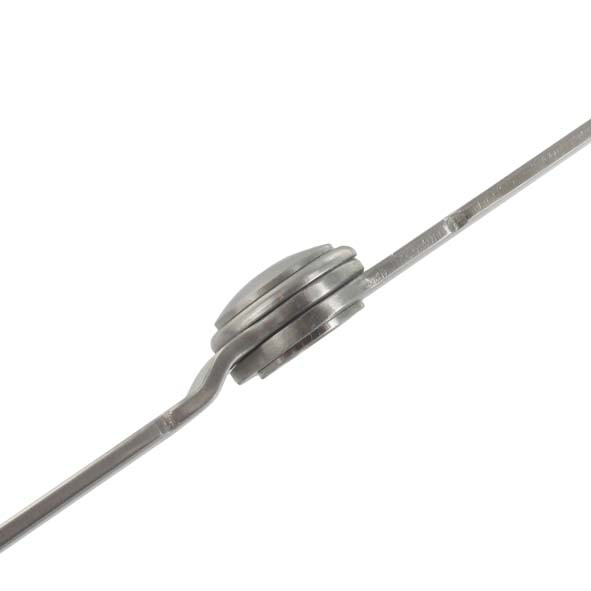

Free Motion Joint
The Free Motion Joint is positioned on the opposite side of either the Corrective Joint or the R.O.M. Joint. It provides the desired torsional stiffness to the orthosis. Free motion (+135° to -135°).
Recommended Range Of Application
Neurological Indications: Apoplexia (CVA), Cerebral Paresis, Multiple Sclerosis, Skull and Brain Trauma, Spastic Paralysis (Hereditary), Spina Bifida, Spinal Paralysis (Spastic), Tetraparesis (Spastic). Orthopedic Indications: Ligament Rupture, Burns, Endoprosthesis Implant, Fracture, Lower Leg Amputation.
Contraindications
Ankylosis, Deformation of Muscles and Bones, Fibrosis, Ossification
| Item No. | Model | Size | Length | Diameter | Width | Height | Product description | Weight |
|---|---|---|---|---|---|---|---|---|
| 696950000 | FreeMotion Integrated Small | Medium | 400 mm | 19 mm | 12 mm | 8 mm | MultiStatic Free Motion Integrated Joint | 78 gram |
| 696960000 | FreeMotion Integrated Medium | Large | 400 mm | 24 mm | 16 mm | 8 mm | MultiStatic Static Joint | 114 gram |
| 696970000 | FreeMotion Modular Small | Small | 93 mm | 18 mm | 12 mm | 11 mm | Free Motion Modular | 40 g |
| 697000000 | - | Medium | - | - | - | - | Free Motion Modular | - |
| 696980000 | FreeMotion Modular T-bar Small | Small | 97 mm | 18 mm | 12 mm | 11 mm | Free Motion Modular w/ T-Bar | 72 g |
| 697030000 | FreeMotion Modular T-bar Medium | Medium | 105 mm | 22 mm | 16 mm | 11 mm | Free Motion Modular w/ T-Bar | 88 g |
| 696990000 | FreeMotion Integrerad T-Bar Small | Small | 250 mm | 18 mm | 12 mm | 11 mm | Free Motion Integrated w/ T-Bar | 106 g |
| 697040000 | FreeMotion Integrerad T-Bar Medium | Medium | 260 mm | 22 mm | 16 mm | 11 mm | Free Motion Integrated w/ T-Bar | 134 g |
-
