Corrective Joint

Allard's SmartFAB Facility is now assembling MultiMotion contracture management orthoses saving you time in the workshop!
Simply click on the specific Order Form button below to get started.

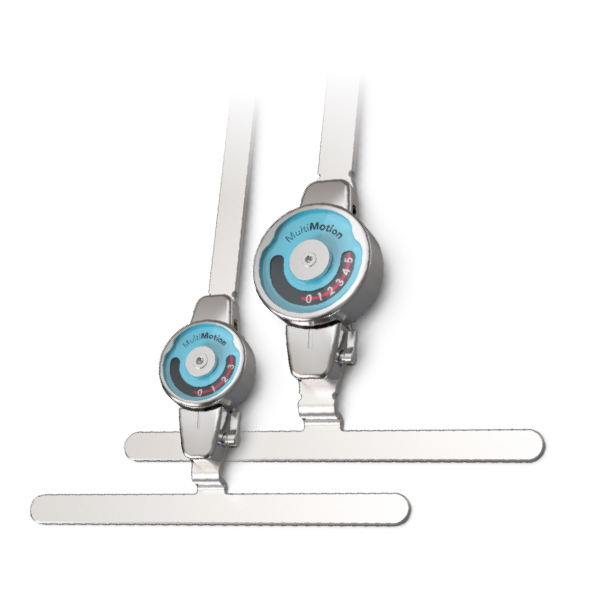

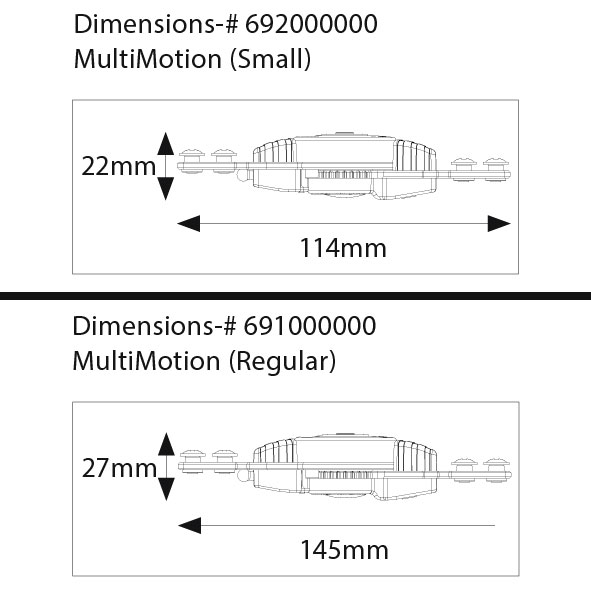

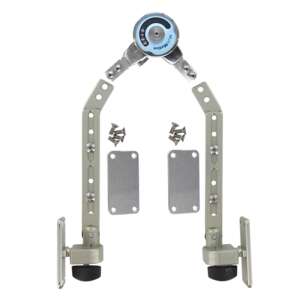

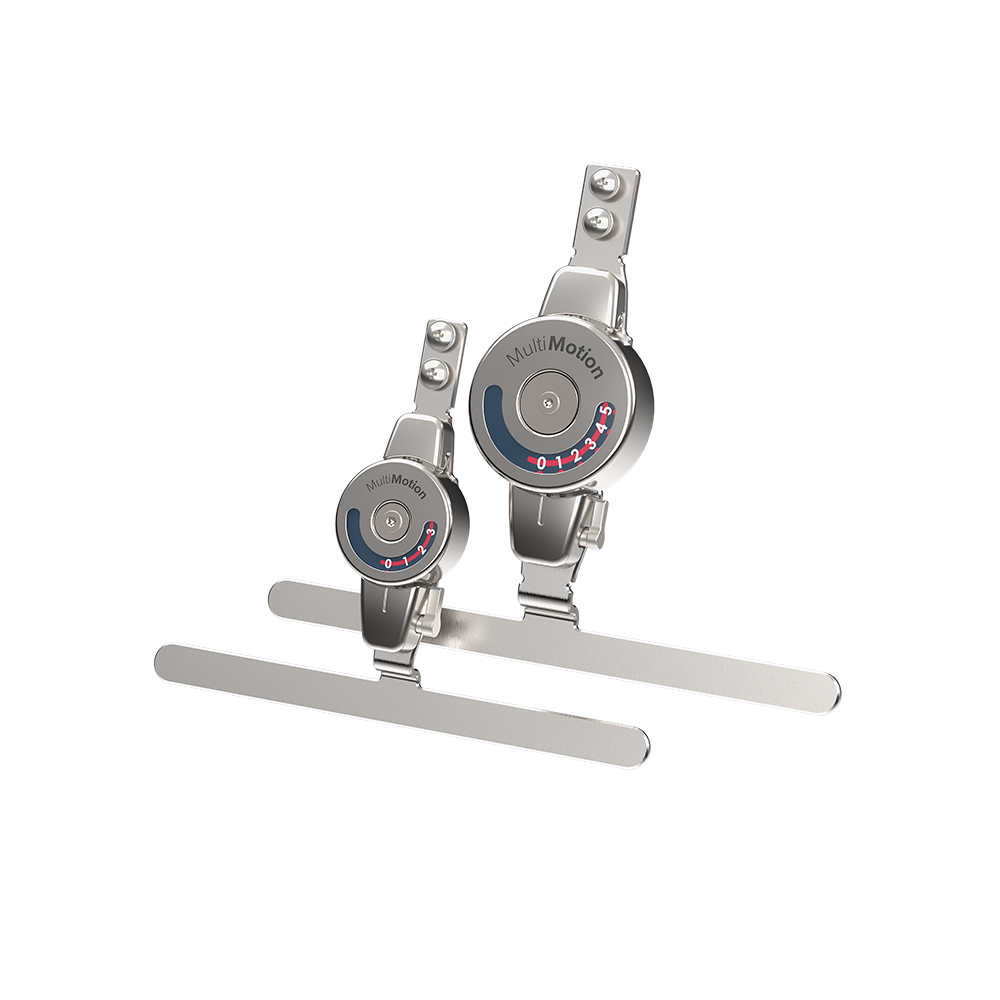

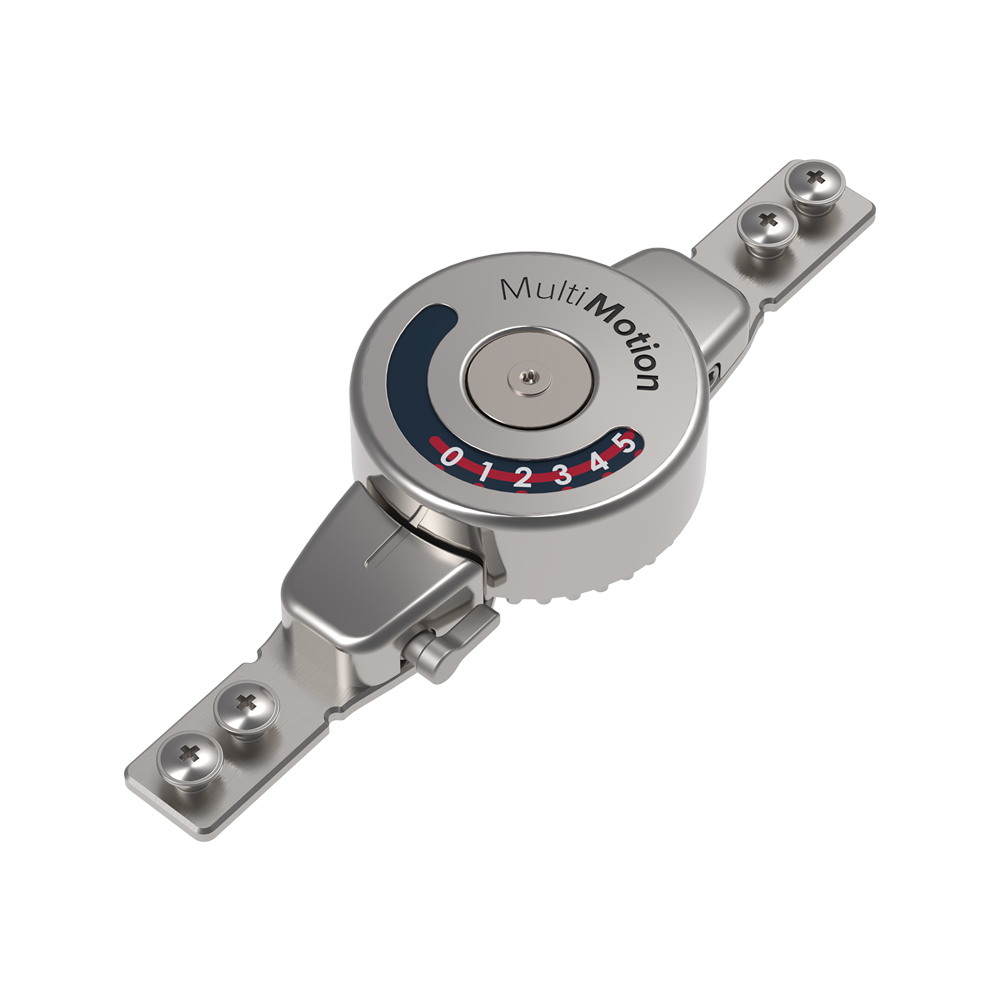

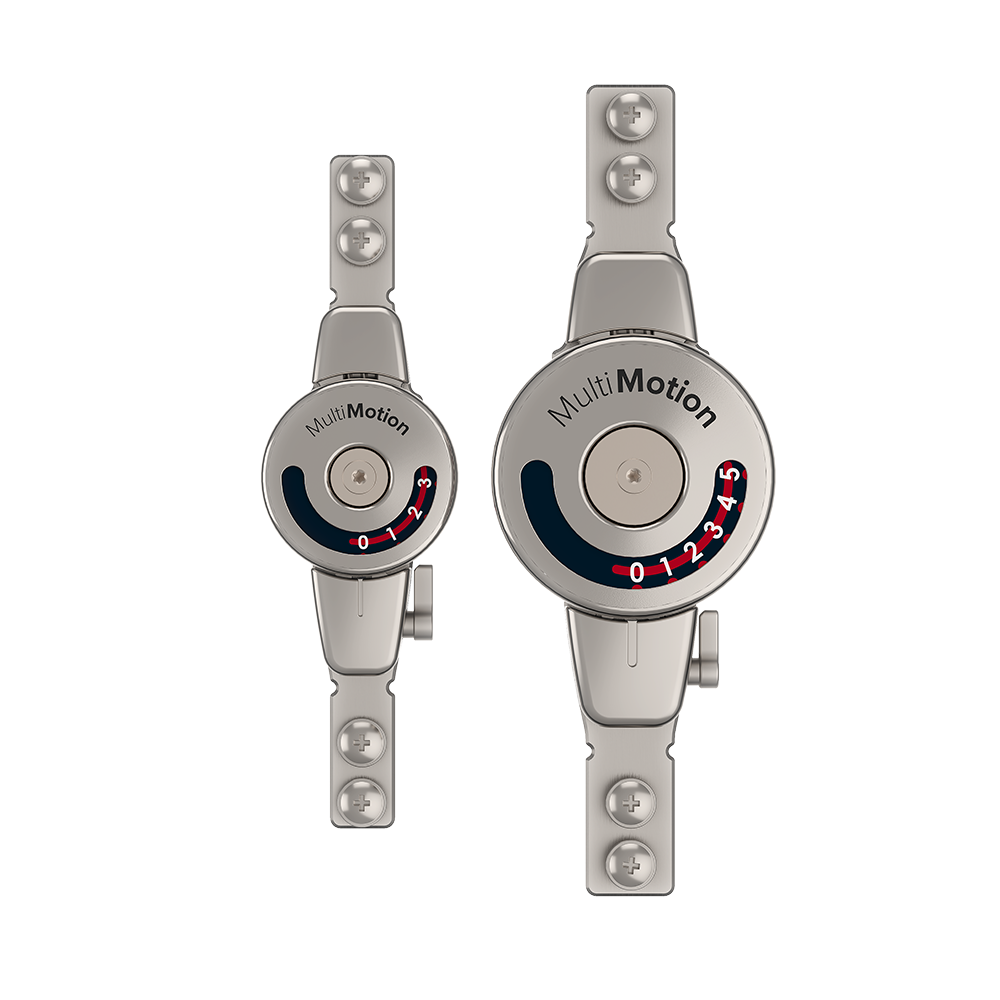

The MultiMotion Corrective Joint is available in Small and Regular sizes. Functionality of the MultiMotion Corrective Joint is based on the LLPS principles (Low Load Prolonged Stretch). This process of gradual, precise, and evenly applied tension stimulates the growth of the shortened tissue and increases joint mobility. Treatment of contracture can be done in either flexion or extension, based on patient needs.

Torque output in flexion or extension by simply flipping the spring. Range of Motion +120° to -120°. Adjustable flexion and extension stops: Small in 14° increments, Regular in 12° increments. Locking and unlocking possible in virtually any position. Torque Output; from 0 Nm to 3.4 Nm (30 in-lb) for size Small, 0 Nm to 10.2 Nm (90 in-lb) for size Regular. Medial and lateral access to set screw for torque output adjustments.

Recommended Range Of Application

Neurological Indications: Apoplexia (CVA), Cerebral Paresis, Multiple Sclerosis, Skull and Brain Trauma, Spastic Paralysis (Hereditary), Spina Bifida, Spinal Paralysis (Spastic), Tetraparesis (Spastic). Orthopedic Indications: Ligament Rupture, Burns, Endoprosthesis Implant, Fracture, Lower Leg Amputation.

Contraindications

Ankylosis, Deformation of Muscles and Bones, Fibrosis, Ossification

Other

Corrective Joint | MultiMotion Contracture Management

Item No. Product Description Size Diameter Stifness

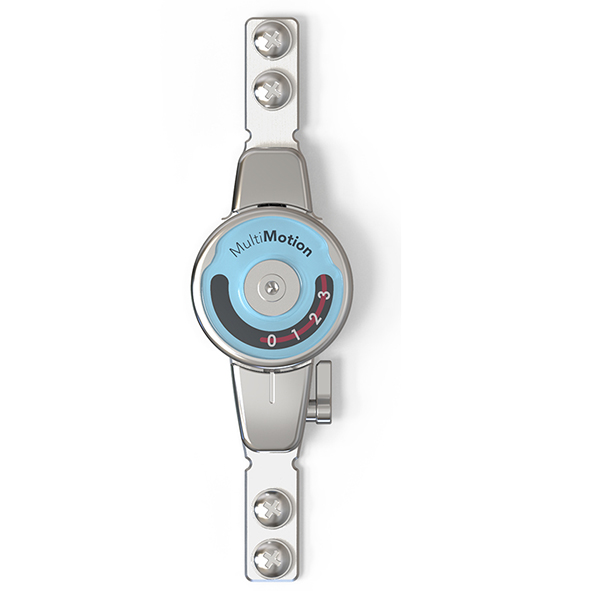

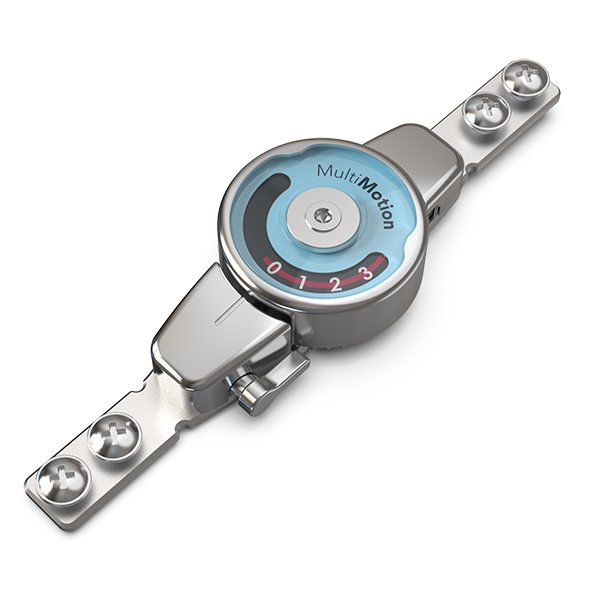

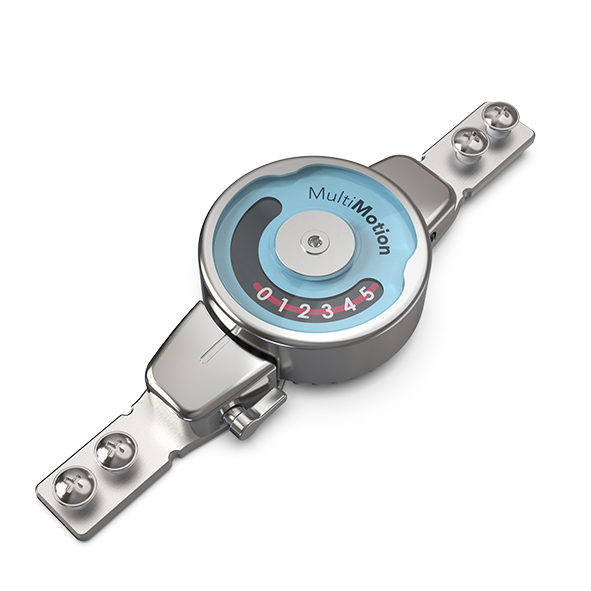

691730000 MultiMotion Modular Medium MultiMotion Modular Medium

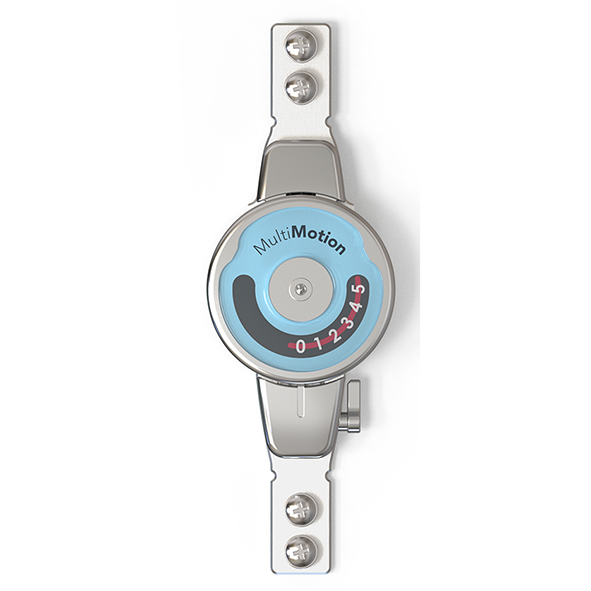

691740000 MultiMotion Modular Large MultiMotion Modular Large
691750000 12mm Bar Connection Width Medium 12mm Bar Connection Width Medium
691760000 16mm Bar Connection Width Large 16mm Bar Connection Width Large

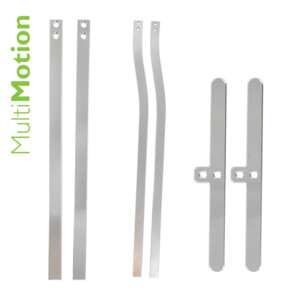

691770000 MultiMotion Integrated Uprights Medium MultiMotion Integrated Uprights Medium
691780000 MultiMotion Integrated Uprights Large MultiMotion Integrated Uprights Large
691790000 12mm Bar Width Medium 12mm Bar Width Medium
691800000 16mm Bar Width Large 16mm Bar Width Large

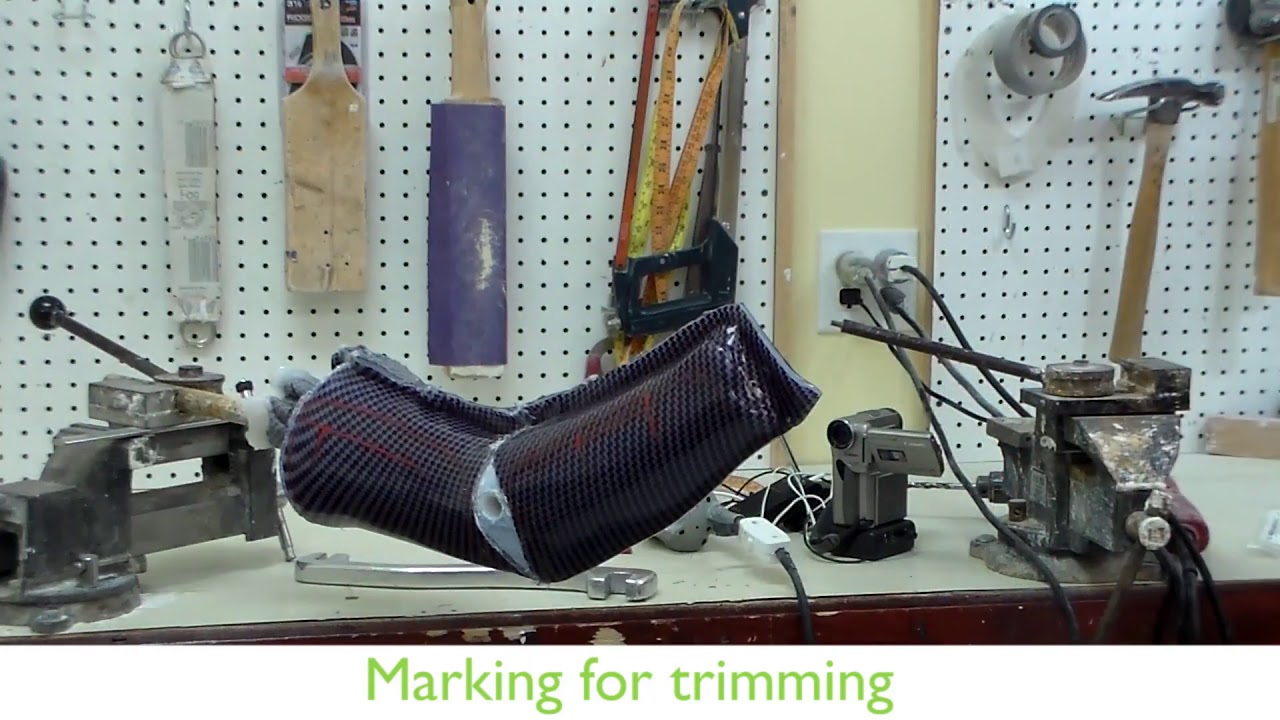

MultiMotion Fabrication Play video
