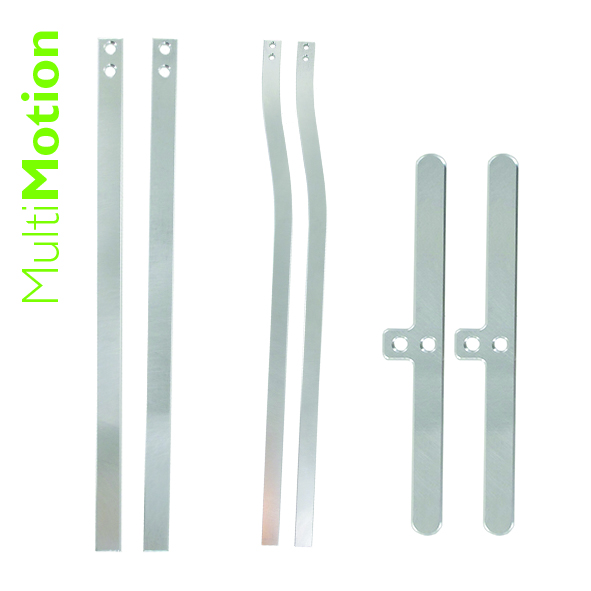

Uprights
All uprights are supplied pre-drilled for optimal attachment to the MultiMotion joints. The uprights are available in two versions - with low and high rigidity - in different sizes and models. The uprights are provided in your choice of 12mm or 16mm bar widths.
Recommended Range Of Application
Neurological Indications: Apoplexia (CVA), Cerebral Paresis, Multiple Sclerosis, Skull and Brain Trauma, Spastic Paralysis (Hereditary), Spina Bifida, Spinal Paralysis (Spastic), Tetraparesis (Spastic). Orthopedic Indications: Ligament Rupture, Burns, Endoprosthesis Implant, Fracture, Lower Leg Amputation.
Contraindications
Ankylosis, Deformation of Muscles and Bones, Fibrosis, Ossification
Other
Uprights | MultiMotion™ Contracture Management
| Item No. | Product Description | Length | Diameter | Width | Length Insole | Thigh Measurement | Thickness | Hardness |
|---|---|---|---|---|---|---|---|---|

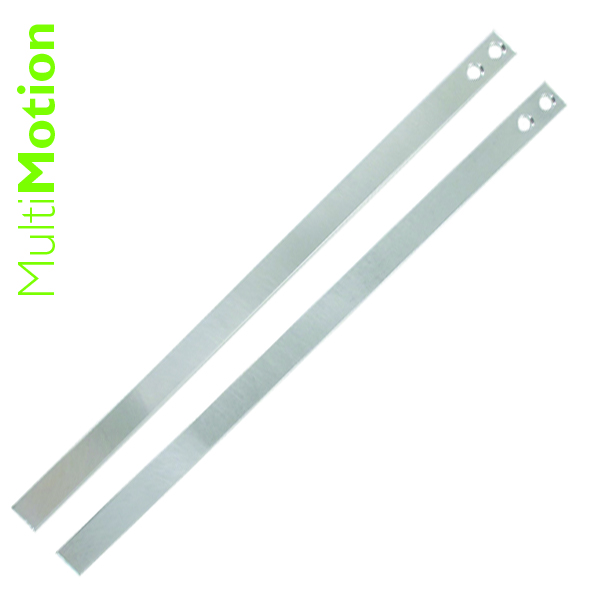

| 691600000 | MultiMotion Uprights, Straight, Set of 2 | 200mm | MultiMotion Uprights, Straight, Set of 2 | 12mm | 200mm | 3.2mm | 3.2mm | High Rigidity |
| 691610000 | MultiMotion Uprights, Straight, Set of 2 | 200mm | MultiMotion Uprights, Straight, Set of 2 | 16mm | 200mm | 4mm | 4mm | High Rigidity |

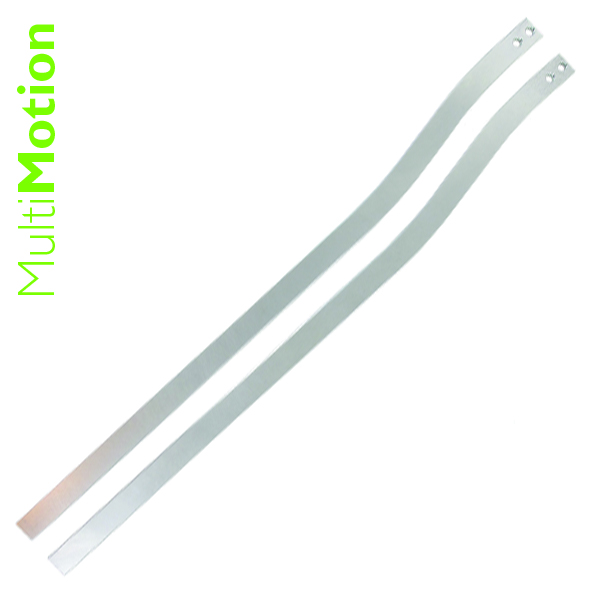

| 691620000 | MultiMotion Uprights, Offset, Set of 2 | 350mm | MultiMotion Uprights, Offset, Set of 2 | 12mm | 350mm | 3.2mm | 3.2mm | High Rigidity |
| 691630000 | MultiMotion Uprights, Offset, Set of 2 | 450mm | MultiMotion Uprights, Offset, Set of 2 | 16mm | 450mm | 4mm | 4mm | High Rigidity |

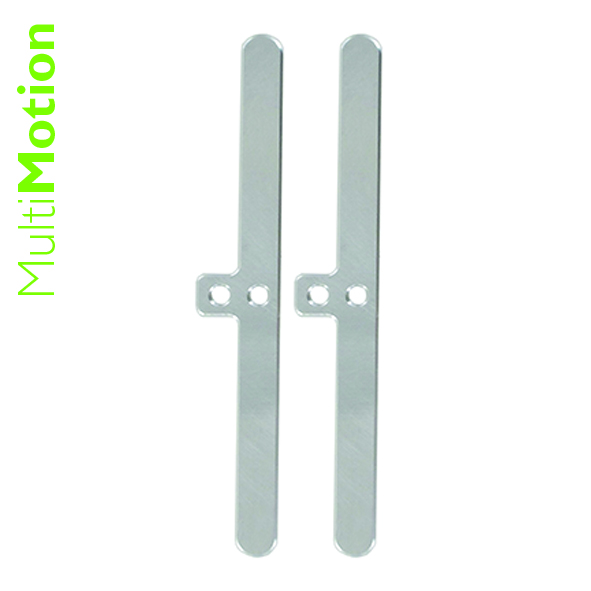

| 691640000 | MultiMotion Uprights, T-Bar, Set of 2 | 150mm | MultiMotion Uprights, T-Bar, Set of 2 | 12mm | 150mm | 3.2mm | 3.2mm | High Rigidity |
| 691650000 | MultiMotion Uprights, T-Bar, Set of 2 | 150mm | MultiMotion Uprights, T-Bar, Set of 2 | 16mm | 150mm | 3.2mm | 3.2mm | High Rigidity |
| 697290000 | MultiMotion Uprights, T-Bar, Set of 2 | 150mm | MultiMotion Uprights, T-Bar, Set of 2 | 12mm | 150mm | 3.2mm | 3.2mm | Low Rigidity |
-
