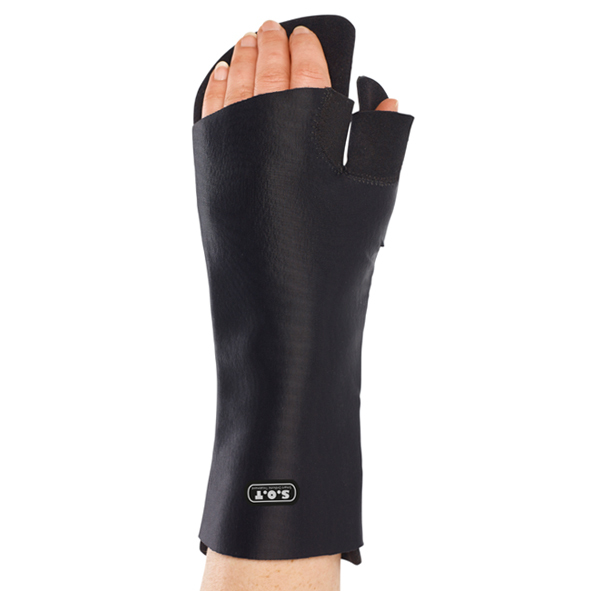

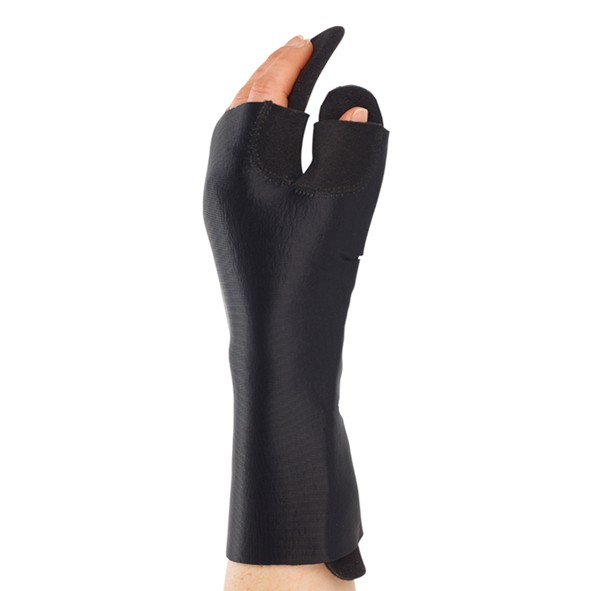

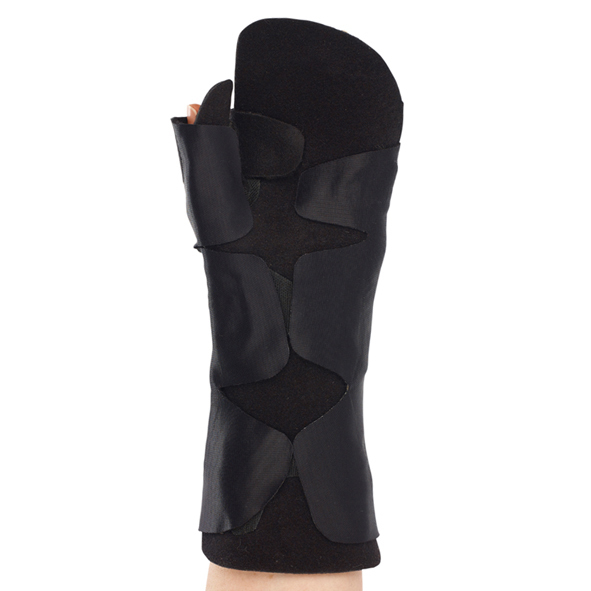

SOT Resting Splint
SOT (Smart Orthotic Treatment) is a resting orthosis for the spastic and paretic hand, when the goal is to maintain or increase the mobility of the hand. Now available in pediatric to adult sizes! The orthosis is smooth and lightweight. The SOT has an aluminum core which allows adjustment to the desired position. The aluminum core is embedded into polyethylene foam, which is covered with fabric. The brace is delivered in a resting position. A resting position can offer pain relief, relaxation to the hand and it also provides a good biomechanical position that may reduce the risk of flexor shortening of the wrist and fingers. The orthosis anatomic configuration supports the important thenar muscle, the CMC and MCP joint, which is particularly important for the intended patient groups, as the thumb tends to adduct at the CMC joint and hyperextend in the MCP joint. S.O.T Resting orthosis increases the conditions for an effective grip.
Recommended Range Of Application:
Stroke, Cerebral Palsy, Rheumatoid Arthritis, Radialis Paresis, Muscular Dystrophy, Edema, or Plexus Injury
Measurement:
MCP width / Length from wrist to end of finger
Other:
Besides the extra wrist band, there are two other accessories: a finger divider and wedges in three different sizes.
| Item No. | Product description | Side | Size | Width | Height |
|---|---|---|---|---|---|
| 287101008 | S.O.T Resting Orthosis | Left | XXX-Small | 5.5cm (2in) | ≤12cm (4.75in) |
| 287101009 | S.O.T Resting Orthosis | Left | XX-Small | ≤6.5cm (2.5in) | ≤14cm (5.5in) |
| 287101010 | S.O.T Resting Orthosis | Left | X-Small | ≤7.5cm (3in) | ≤16cm (6.25in) |
| 287101011 | S.O.T Resting Orthosis | Left | Small | ≤7.5cm (3in) | ≤18.5cm (7.25in) |
| 287101012 | S.O.T Resting Orthosis | Left | Medium | ≤9cm (3.5in) | ≤20cm (7.75in) |
| 287101013 | S.O.T Resting Orthosis | Left | Large | ≤9cm (3.5in) | ≤21cm (8.25in) |
| 287102008 | S.O.T Resting Orthosis | Right | XXX-Small | 5.5cm (2in) | ≤12cm (4.75in) |
| 287102009 | S.O.T Resting Orthosis | Right | XX-Small | ≤6.5cm (2.5in) | ≤14cm (5.5in) |
| 287102010 | S.O.T Resting Orthosis | Right | X-Small | ≤7.5cm (3in) | ≤16cm (6.25in) |
| 287102011 | S.O.T Resting Orthosis | Right | Small | ≤7.5cm (3in) | ≤18.5cm (7.25in) |
| 287102012 | S.O.T Resting Orthosis | Right | Medium | ≤9cm (3.5in) | ≤20cm (7.75in) |
| 287102013 | S.O.T Resting Orthosis | Right | Large | ≤9cm (3.5in) | ≤21cm (8.25in) |
| 287110009 | MCP Wedge | Bilateral | XX-Small | 6.5cm (2.5in) | 1cm (0.4in) |
| 287110011 | MCP Wedge | Bilateral | Small | 7.5cm (3in) | 1.5cm (0.6in) |
| 287110013 | MCP Wedge | Bilateral | Large | 9cm (3.5in) | 2cm (0.75in) |
| 287120003 | Finger Divider | Bilateral | Pediatric | - | - |
| 287120005 | Finger Divider | Bilateral | Medium | - | - |
| 287120007 | Finger Divider | Bilateral | Large | - | - |
| 287130009 | Extra Strap | Bilateral | XXXS - XS | - | - |
| 287130012 | Extra Strap | Bilateral | Small - Large | - | - |
| 287141008 | Additional Cover | Left | XXX-Small | - | - |
| 287141009 | Additional Cover | Left | XX-Small | - | - |
| 287141010 | Additional Cover | Left | X-Small | - | - |
| 287141011 | Additional Cover | Left | Small | - | - |
| 287141012 | Additional Cover | Left | Medium | - | - |
| 287141013 | Additional Cover | Left | Large | - | - |
| 287142008 | Additional Cover | Right | XXX-Small | - | - |
| 287142009 | Additional Cover | Right | XX-Small | - | - |
| 287142010 | Additional Cover | Right | X-Small | - | - |
| 287142011 | Additional Cover | Right | Small | - | - |
| 287142012 | Additional Cover | Right | Medium | - | - |
| 287142013 | Additional Cover | Right | Large | - | - |
SOT Resting Splint Initial Fitting
SOT Resting Splint From Resting to Position of Safety

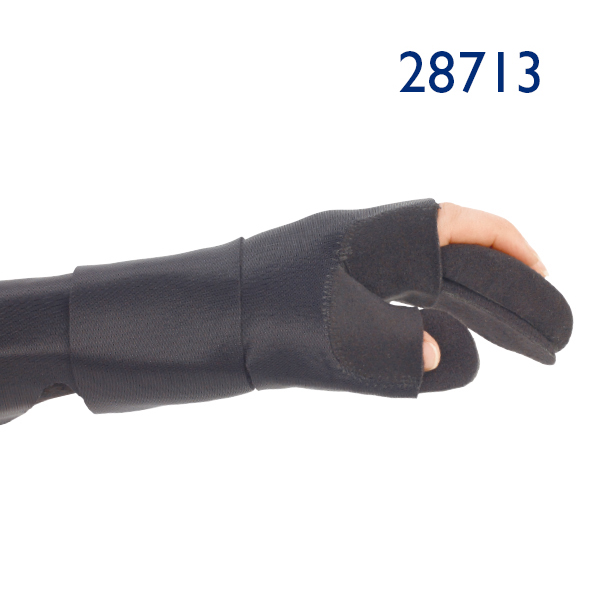

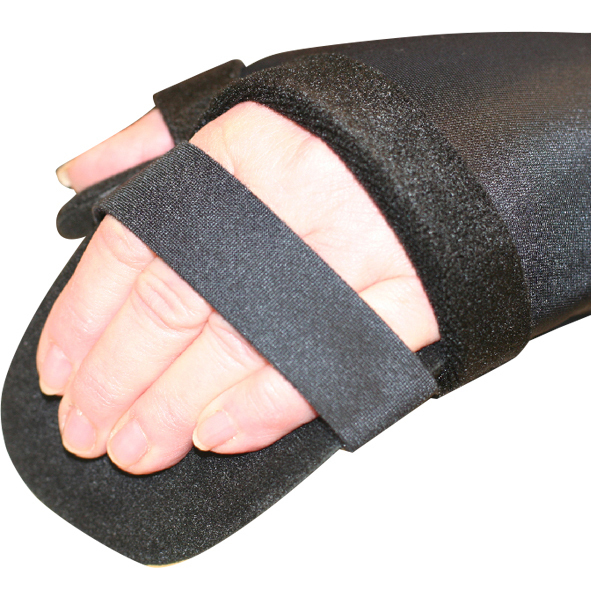

SOT Resting Splint – Fitting the wrist strap

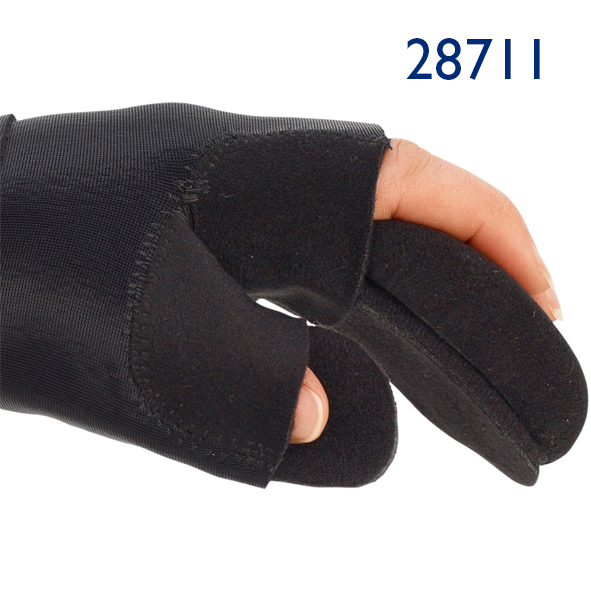

SOT Resting Splint – Fitting the wedge

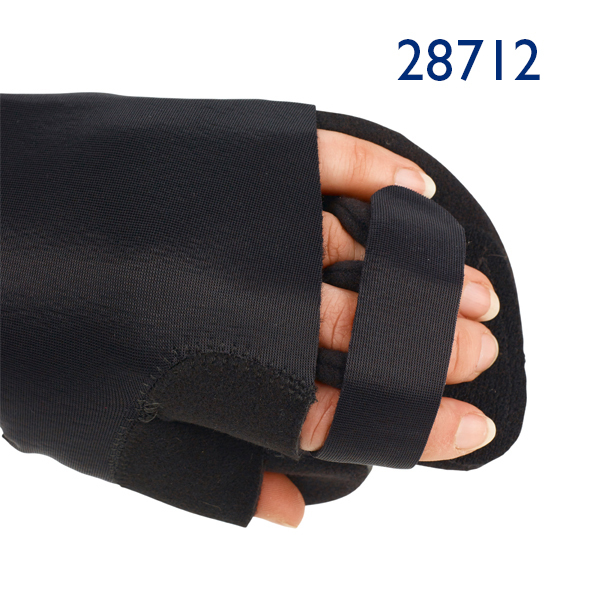

SOT Resting Splint – Fitting Finger Divider
