SWASH® STEADY and GO Uprights
A complete SWASH® orthosis requires a Pelvic Section, Thigh Cuffs, and Uprights. Please order each item separately.
CUSTOM LENGTH UPRIGHTS
For new adult patients and/or your current SWASH® wearers that are growing up and current uprights just are not long enough, you may now custom order longer uprights.
Add up to 6" distal length to any size. Offered for 8mm diameter uprights only. All SWASH® Steady & Go except size 1 for Steady. Old SWASH Low Profile.
Measurement:
Measure waist to mid-patella. At final fitting, should be shortened to level of distal thigh cuff padding.

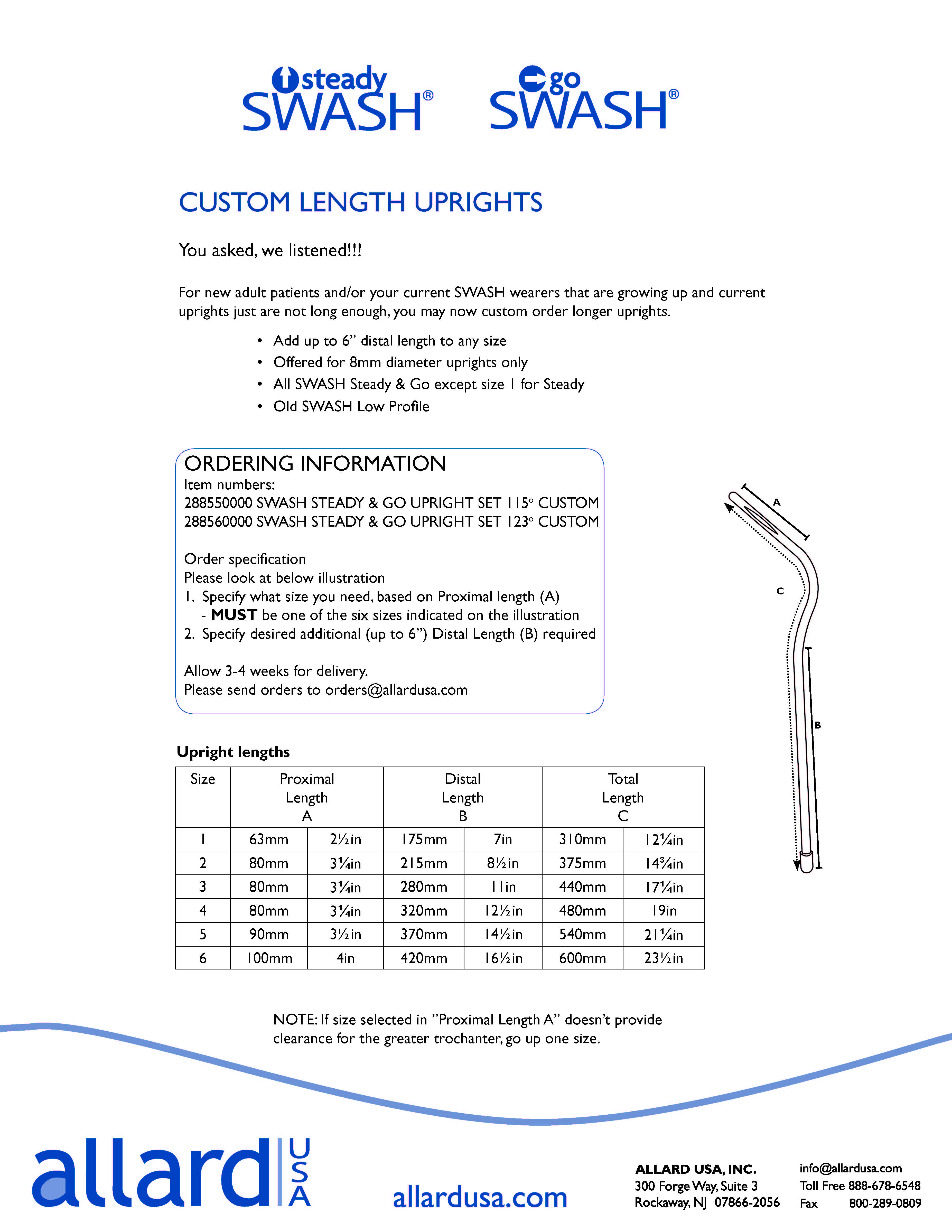

Measuring info for Custom Length Uprights can be found in the images section, or in the "SWASH Custom Uprights Ordering Guide" in the Support Documents tab below.
Other:
115° = narrow sitting base
123° = wide sitting base
Item No. | Product description | Diameter | Size | Length |
---|---|---|---|---|
288550000 | SWASH® STEADY & GO 115° Custom Uprights | 8mm | - | - |
288550601 | SWASH® STEADY 115° Uprights | 6mm | 1 | 12.25in (310mm) |
288550801 | SWASH® GO 115° Uprights | 8mm | 1 | 12.25in (310mm) |
288550802 | SWASH® STEADY & GO 115° Uprights | 8mm | 2 | 14.75in (375mm) |
288550803 | SWASH® STEADY & GO 115° Uprights | 8mm | 3 | 17.25in (440mm) |
288550804 | SWASH® STEADY & GO 115° Uprights | 8mm | 4 | 19in (480mm) |
288550805 | SWASH® STEADY & GO 115° Uprights | 8mm | 5 | 21.25in (540mm) |
288550806 | SWASH® STEADY & GO 115° Uprights | 8mm | 6 | 23.5in (600mm) |
288560000 | SWASH® STEADY & GO 123° Custom Uprights | 8mm | - | - |
288560601 | SWASH® STEADY 123° Uprights | 8mm | 1 | 12.25in (310mm) |
288560801 | SWASH® GO 123° Uprights | 8mm | 1 | 12.25in (310mm) |
288560802 | SWASH® STEADY & GO 123° Uprights | 8mm | 2 | 14.75in (375mm) |
288560803 | SWASH® STEADY & GO 123° Uprights | 8mm | 3 | 17.25in (440mm) |
288560804 | SWASH® STEADY & GO 123° Uprights | 8mm | 4 | 19in (480mm) |
288560805 | SWASH® STEADY & GO 123° Uprights | 8mm | 5 | 21.25in (540mm) |
288560806 | SWASH® STEADY & GO 123° Uprights | 8mm | 6 | 23.5in (600mm) |
-
SWASH® Classic & LP to STEADY & GO Item Number Conversion Chart (83.08 KB)
-
SWASH® Certification Documents (4.53 MB)
-
SWASH® Clinical Manual (562.87 KB)
-
SWASH® Custom Uprights Ordering Guide (87.97 KB)
-
SWASH® STEADY & GO Fitting & Customization Manual (1.33 MB)
-
SWASH® STEADY & GO Referral Source Brochure (538.35 KB)
-
SWASH® STEADY & GO Sizing Chart and Spare Parts List (283.68 KB)
-
SWASH® STEADY & GO O&P Brochure (417.9 KB)
